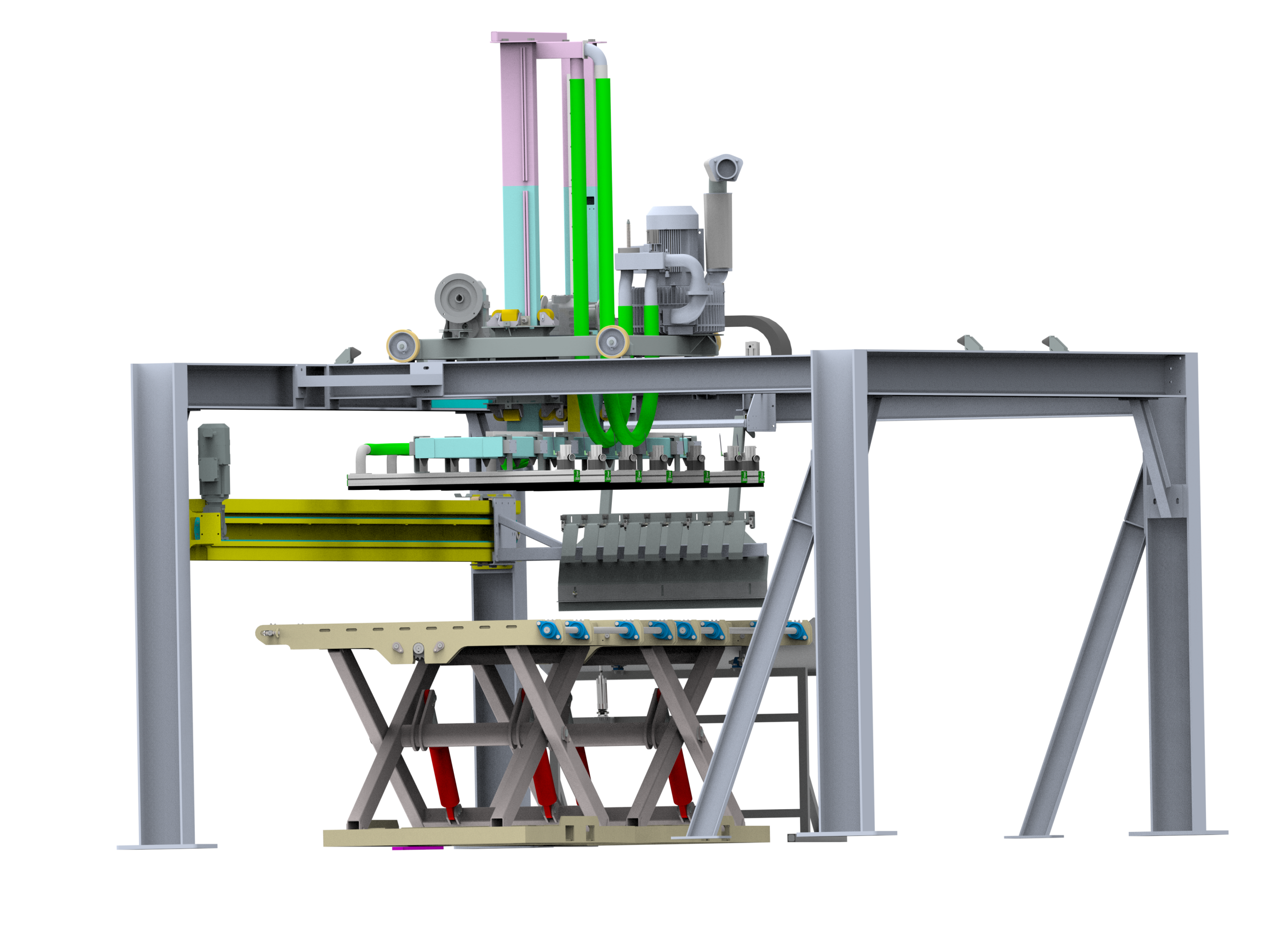

| Destacking system that uses vacuum technology to separate layers | |||
| Boards length: | 1000 – 6100 mm | ||
| Boards minimal width: | 40 mm | ||
| Maximal weight of layer to be lifted: | 180 kg | ||
| Vacuum pads: Joulin (France) 6 pcs vacuum grippers EGB VG 1400x125mm P15 for layer 1200mm wide | |||
| Vacuum turbine: | 11kw | ||
| Lifting mechanic (Z axis) stroke: | 1500 mm | ||
| Traversing mechanic (X axis) stroke: | 1800 mm | ||
| Productivity max: | 4 cycles per minute | ||
